60 - 70 V/sec Phase to Phase. 35 V/sec Phase to Neutral, Without any hunting or overshoot.
Overloading
100% Load continuous & 200% for 10 Cycles
Response Time
10 Milliseconds
Efficiency
Better than 97%
Waveform Distortion
Nil
Effect on Load Power Factor
Nil
Ambient
0-45 Deg.C & 90% R.H.
Connection
Suitable for 3 Phase Unbalanced load & Supply.
Environment
Indoor tropical use.

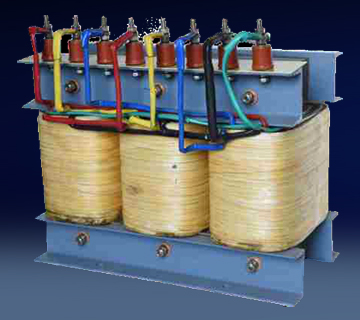

Stabilizer with Isolation Transformer.
Stabilizer with Ultra Isolation Transformer.
Type
Delta / Star
Delta / Star
Die-Electric Strength
HV Test At 2500 VAC for 60 seconds.
At 2500 VAC for 60 seconds.
Enclosure
Enclosed in sheet metal structure of adequate thickness with louvers for ventilation and wheels for mobility.
Enclosed in sheet metal structure of adequate thickness with louvers for ventilation and wheels for mobility.
Common mode noise Attenuation
40dB
100dB
D.C. Galvanic Isolation
Greater than 50 Mega Ohms.
Greater than 1000 Mega Ohms.
Coupling Capacitance
-
0.1p.F..
Accessories Included
• Visual indication, Audio alarm (Buzzer) for under / Over Voltage.
• Tripping time settable from 0 - 10 sec. Factory setting at 3 sec.
• Output 'ON' indication on each phase.
• Voltmeter with selector switch for Phase selection.
• Selector switch for Input / Output voltage selection.
Optional
• Spike buster card with lighting diodes. •Single Phasing Protection • Digital VAF mete •Servo Digital Conditioner cards. Above 60 KVA It's a standard feature.
• MCB / MCCB at Input for short circuit & overload protection.
• Power Contactor at output for tripping output if voltage fluctuates beyond range. Up to 100 KVA.
• Start / Stop push Button.
• Auto / Manual switch for auto / manual mode operation.
